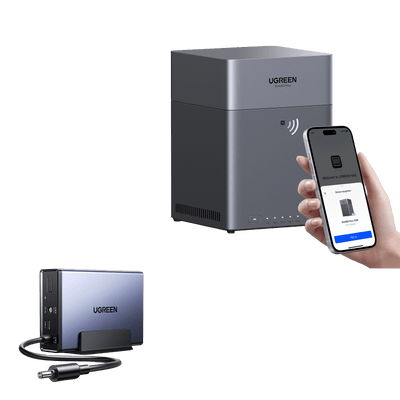

UGREEN NASync DH4300 Plus
- A Home NAS for Growing Family Libraries: The UGREEN NASync DH4300 Plus brings family photos, videos, and device backups together in a 4-bay system.
- Four Bays, More Storage Options: Build up to 128TB of raw storage and choose RAID 5, RAID 6, or RAID 10 as your household library grows.
- Organize and Share Family Memories: AI photo grouping, duplicate detection, and baby growth albums help organize your collection. Share selected photos by QR code or link.
- 2.5GbE for Everyday Home Workflows: An eight-core ARM processor, 8GB of memory, and 2.5GbE support backups, file sharing, media playback, and supported lightweight Docker apps.
- Your Files, Your Access Settings: Use UGREEN apps across devices and manage locally stored files with encryption, firewall settings, and two-factor authentication—without a required cloud storage subscription.
- Device warranty: Two-year device warranty. See applicable warranty terms Warranty terms.
Notes: Drives sold separately. It supports Docker but not VMs.
Couldn't load pickup availability


Why We Recommend NAS
Subscription
Data Security
Upload and Download Speeds
Easy to use
Free
High
File sync & backup
Permission management
Real-time scan
Fast & Stable
Paid
Limited
Cloud provider outage
Lost file access rights
Limited & Unstable
--
Low
Hardware damage
Fast
Say Goodbye to Cloud Fees



Easy Remote Access

NFC Quick Connect
2. Use NFC to access the registration screen, find your device, and complete connection in seconds.
3. If already connected, NFC recalls your history for quick login.
"Requires NFC-enabled Android/iOS device"

AI-Powered Photo Album
Family's AI Album
Baby's Growth Album

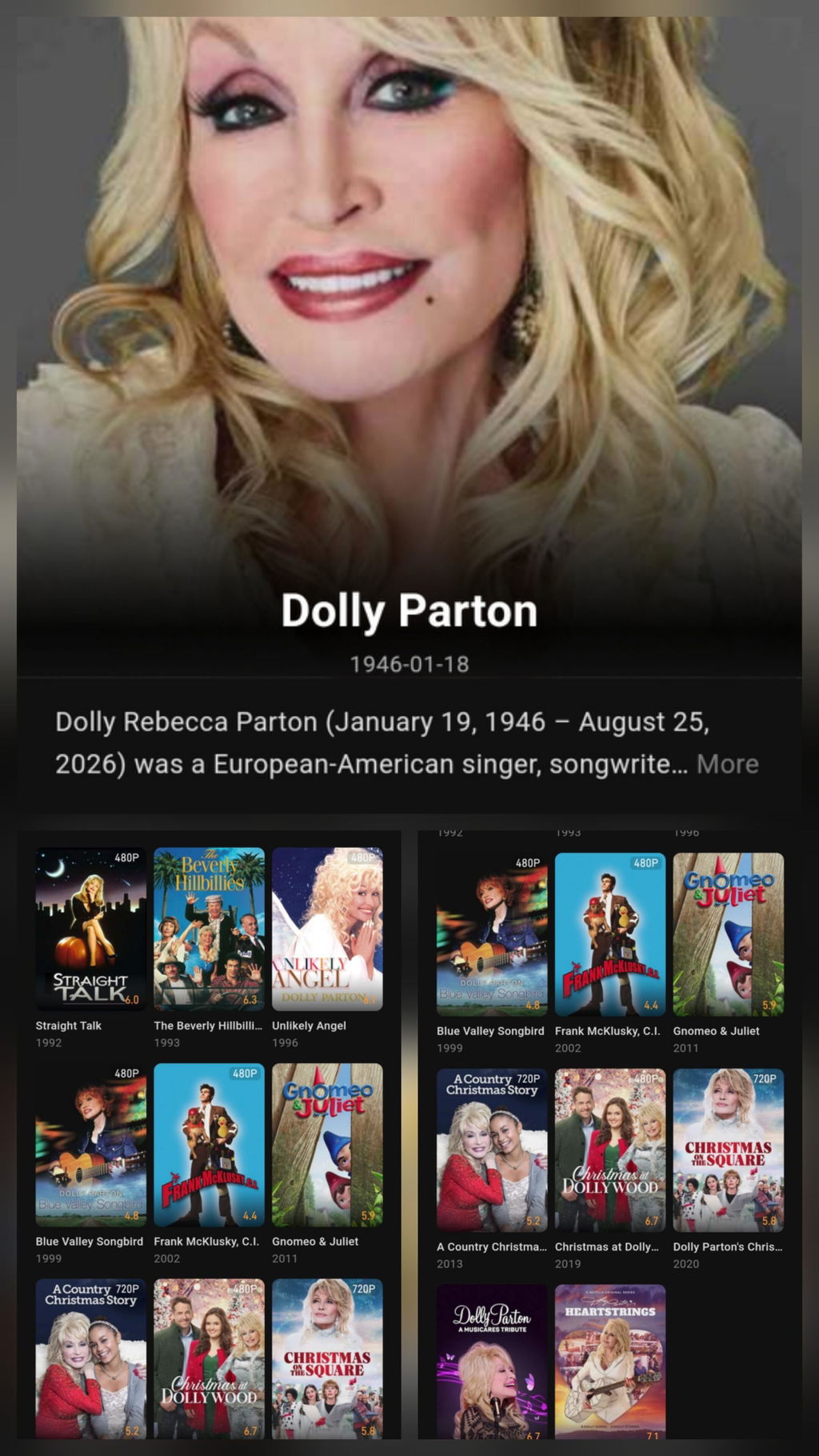

Build your personal video library
More Efficient Team Collaboration


Privacy and Data Security in Your Hands
Certified by TÜV and TRUSTe, your data stays safe and protected.

Take Control of Your Privacy
Use strong permission controls to set up private folders and spaces for each family member, while still enabling easy sharing.

2FA Identity verification
Add an extra layer of protection to your account with a one-time passcode, keeping your data safe even if your password is compromised.
UGOS
Software Security Protection
RAID Data Protection

Port Layout

What's in the box

Detailed Specs
Frequently Asked Questions About UGREEN DH4300 Plus
No. The DH4300 Plus is a diskless NAS, so hard drives are sold separately. Its four SATA bays accept 3.5-inch and 2.5-inch SATA drives. It has no M.2 NVMe slots for a separate NVMe pool or for cache.
Use matched CMR NAS drives where possible. Select DH4300 Plus and your hardware type in the UGREEN NAS Compatibility List before purchasing.
Yes. You can begin with one drive in Basic mode or two matched drives in RAID 1, then add sufficient drives and migrate upward through supported paths such as Basic → RAID 1 → RAID 5. JBOD and RAID 0 cannot be migrated to RAID 5.
With four matching 32TB drives, RAID 5 provides approximately 96TB before formatting overhead and protects against one drive failure. RAID 6 and RAID 10 provide approximately 64TB; RAID 6 can tolerate two drive failures, while RAID 10 requires failures to occur in separate mirrored pairs. Back up important data before migration or rebuilds. Use the RAID Calculator to estimate your planned RAID capacity.
Yes. Set up Photo Backup in the UGREEN NAS app on each iPhone or Android phone. Give each person their own NAS account and backup folder, and use shared albums for photos the family wants to see together.
See the UGREEN NAS Photos guide for phone backup and shared album setup.
The DH4300 Plus supports Docker, but it does not support virtual machines. Its fixed 8GB LPDDR4X memory and ARM processor suit lightweight containers rather than an expandable homelab with multiple resource-intensive services.
Choose a DXP model if virtual machines, expandable memory, M.2 SSD storage, or broader x86 application compatibility are requirements.
Yes, the DH4300 Plus can serve a home media library, but it is best planned around direct playback rather than demanding remote transcoding. It provides HDMI 4K60 output, DLNA, and UGREEN media applications for local playback.
It does not have Intel Quick Sync, so codec conversion, subtitle burn-in, client compatibility, available bandwidth, and simultaneous streams can limit Plex or Jellyfin performance. For setup, follow the Jellyfin installation steps for UGREEN NAS.
Both are diskless four-bay NAS systems with RAID 5, RAID 6, RAID 10, and HDMI output, but they serve different workloads. The DH4300 Plus has four SATA bays, fixed 8GB LPDDR4X memory, one 2.5GbE port, no M.2 slots, and no virtual-machine support.
The DXP4800 Plus adds an Intel Pentium Gold 8505 processor, 8GB DDR5 expandable to 64GB, two M.2 NVMe slots, one 10GbE port plus one 2.5GbE port, and virtual-machine support. Choose it for 10GbE transfers, SSD caching or SSD storage, larger Docker workloads, or hardware-assisted media transcoding. Review the DXP4800 Plus hardware configuration.
Choose DH4300 Plus in the Download Center to find its Product Documentation, System Firmware, desktop Client, and any model-specific app packages. Do not install firmware or drivers intended for another NAS model.
The DH4300 Plus is a strong fit for home users who need four SATA bays, RAID 5 or RAID 6, automatic photo backup, family file sharing, and direct 4K TV playback without paying for 10GbE or hardware expansion they will not use.
Choose another model if you need M.2 NVMe storage, expandable memory, virtual machines, 10GbE networking, or more capacity than four SATA bays provide. You can filter the full lineup by those requirements—browse and filter UGREEN NAS models.
Specs
| SKU | 65651 |
| Model | DH4300 Plus |
| Supported Languages | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 4-Bay (SATA) |
| Operating System | UGOS |
| CPU Model | A76+A55 8 Core |
| CPU Brand & Architecture | Rockchip ARM 8 Cores 2.0 GHz |
| Memory (RAM) | 8GB LPDDR4X |
| Flash Memory (System Disk) | eMMC 32GB |
| SATA Drive Bays | 4 |
| RAID | JBOD/Basic/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10 |
| Maximum Storage | 128TB (4x 32TB) |
| LAN Ports (RJ45) | 1x 2.5GbE |
| PCIe Expansion | - |
| High-Speed USB Ports (Front Panel) | 1x USB 3.2 Gen 1 (5Gb/s), 2x USB-A (both 5Gb/s) |
| HDMI | 4K 60Hz |
| Product Dimensions | L155 x W155 x H215.7 mm |
| Power Consumption | 22.89W (drive access)
7.23W (drive hibernation) |
