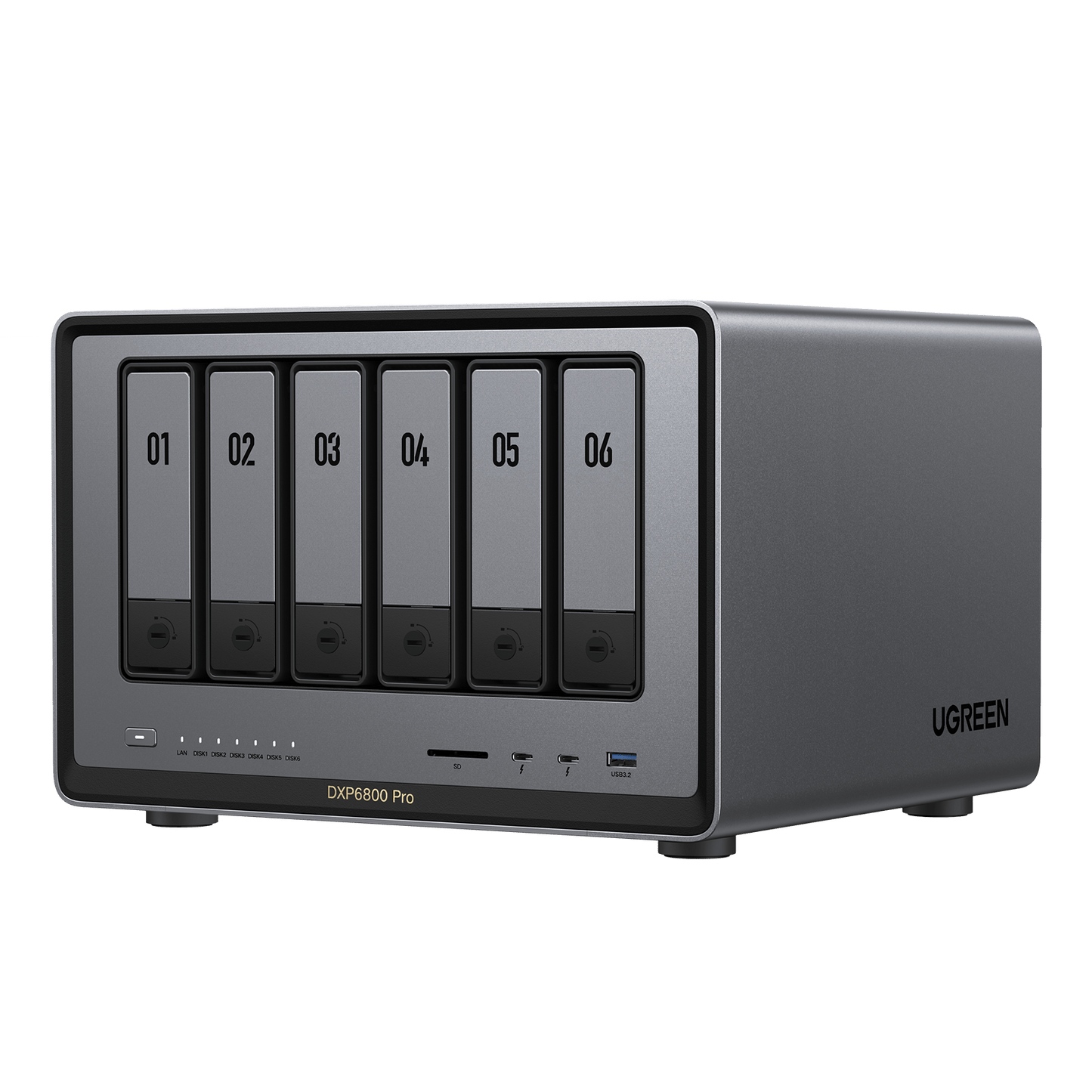

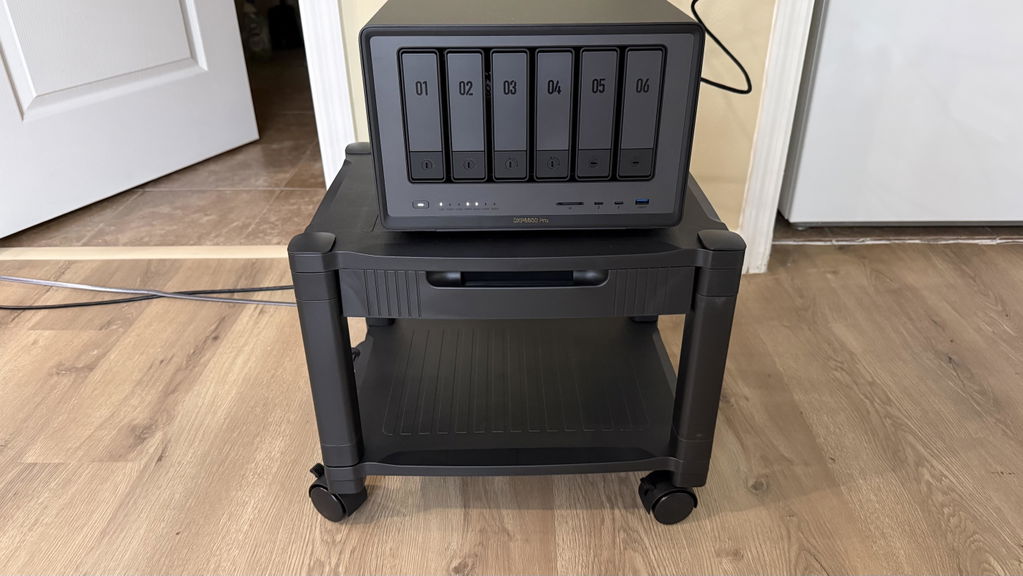

UGREEN NASync DXP6800 Pro
- Built for Growing Studios: The UGREEN NASync DXP6800 Pro is a 6-bay NAS for studios bringing shared projects, media libraries, and backups into one workspace.

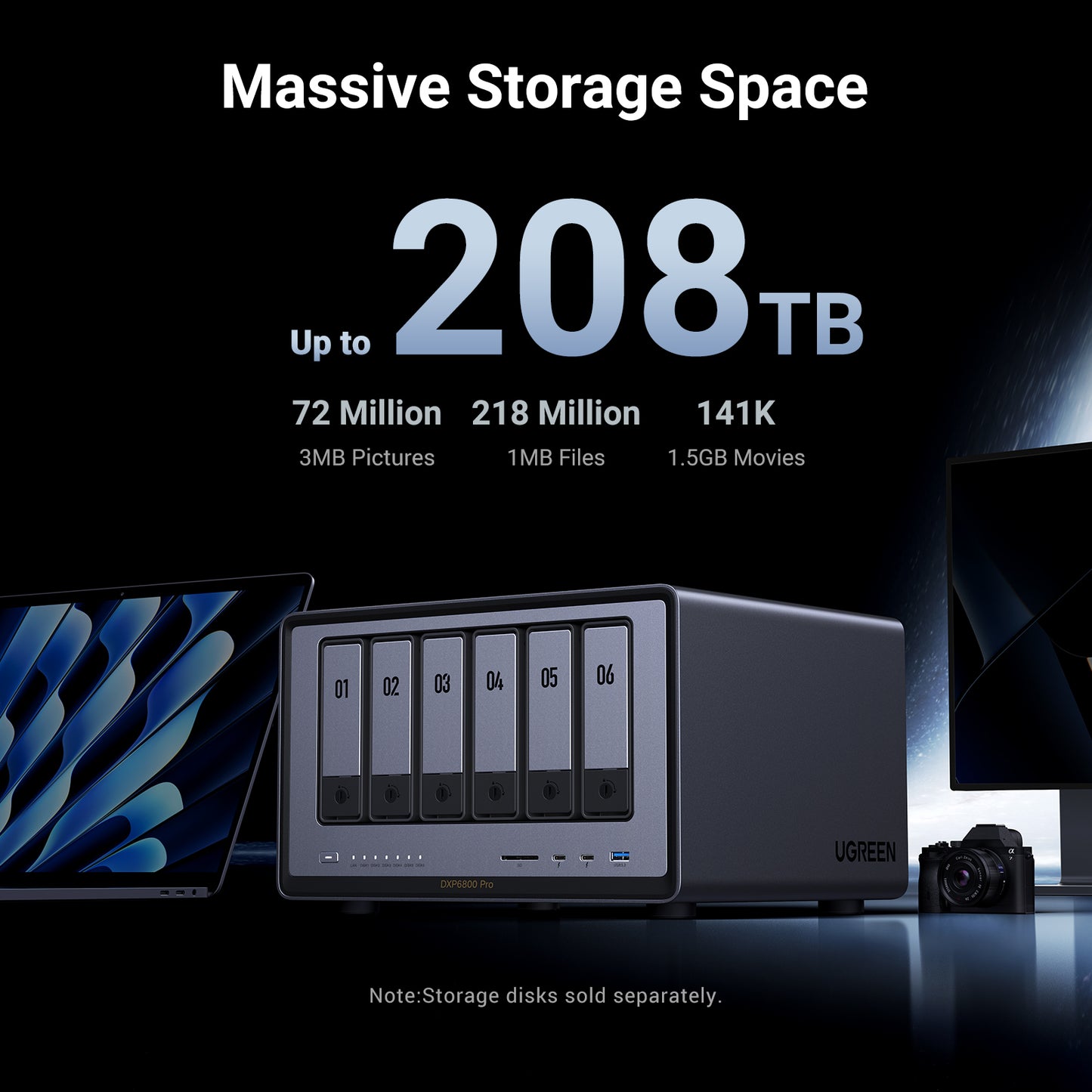

- Room for a Growing Library: Six SATA bays and two M.2 slots support up to 208TB of raw capacity. And supports JBOD/Basic/RAID0/RAID1/RAID5/RAID6/RAID10 RAID levels.

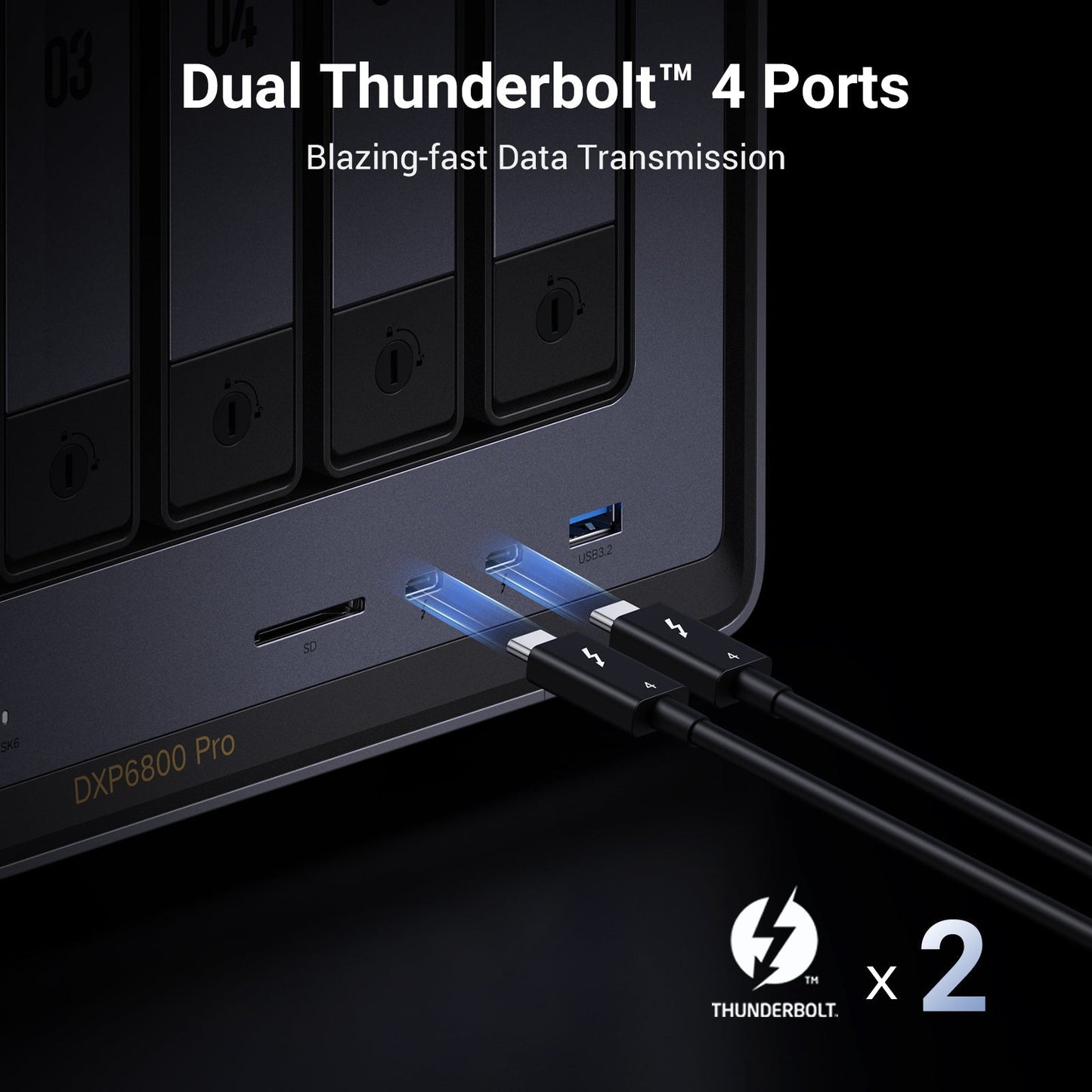

- Connections for Large-File Workflows: Dual 10GbE ports and dual Thunderbolt 4 connections give a compatible workspace more connection options for large project files.
- Intel Processing, Expandable Memory: An Intel Core i5-1235U and 8GB DDR5, expandable to 64GB, support Docker, virtual machines, and NAS applications.

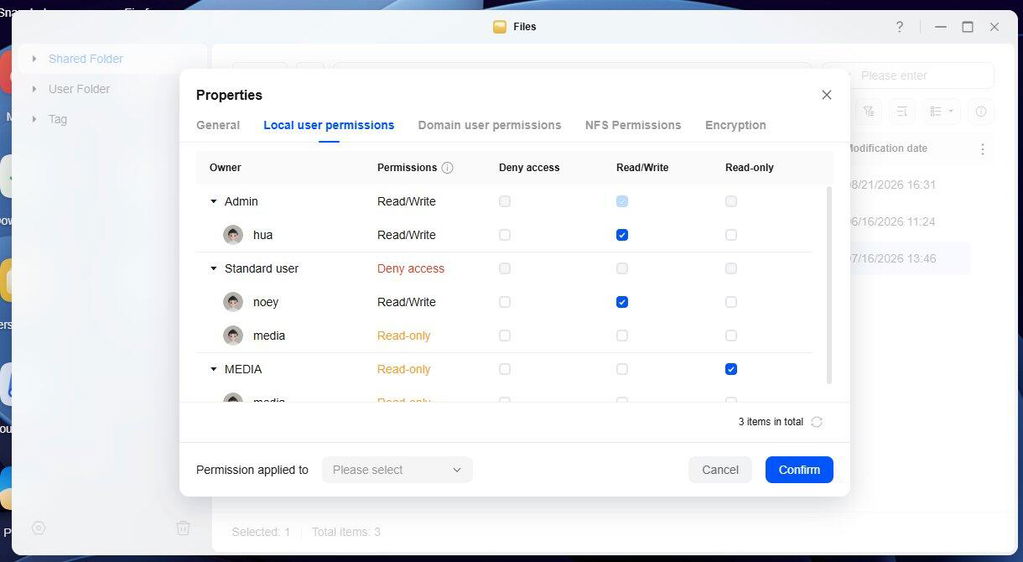

- Team Files in One Place: Manage storage, backups, files, and AI photo albums through UGOS, with permissions for sharing projects among users.
- Device warranty: Three-year device warranty. See applicable warranty terms.
Notes: Drives sold separately. Please check our compatibility list for full.
Couldn't load pickup availability

Detailed Specs
Specs
| SKU | 25898 |
| Model | DXP6800 Pro |
| Supported Languages | English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語 |
| Drive Bays | 6-Bay (SATA) |
| Operating System | UGOS |
| CPU Model | 1235u |
| CPU Brand & Architecture | Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads |
| Memory (RAM) | 8GB DDR5 |
| ODECC | Supported |
| Expandable RAM (Max) | 64GB |
| Flash Memory (System Disk) | SSD 128GB |
| SATA Drive Bays | 6 |
| M.2 SSD Drive Slots | 2 |
| RAID | JBOD/Basic/0/1/5/6/10 |
| Maximum Storage | 208TB (6x 32TB + 2x 8TB) |
| LAN Ports (RJ45) | 2x 10GbE |
| PCIe Expansion | 1x PCIe x4 |
| Thunderbolt™ 4 Ports | 2 |
| High-Speed USB Ports (Front Panel) | 2x Thunderbolt 4 (40Gb/s) |
| High-Speed USB Ports (Rear Panel) | 2x USB-A 2.0; 1x USB-A 3.2 |
| USB 2.0 (Rear Panel) | 2x USB-A (480Mb/s) |
| SD Card Reader | SD 4.0 |
| HDMI | 8K |
| Wi-Fi | - |
| Product Dimensions | L11.54×W10.16×H7.87 inches |
| Power Consumption |
43.07 W (drive access) 24.91 W(drive hibernation) |
Frequently Asked Questions About DXP6800 Pro
The DXP6800 Pro comes with 8GB of DDR5 memory and supports memory expansion up to 64GB.
For the best stability, verify the exact memory module rather than choosing RAM based only on DDR generation, speed, or capacity. You can check tested modules in the UGREEN NAS compatibility list before upgrading.
The DXP6800 Pro is rated at approximately 43.07W during drive access and 24.91W during drive hibernation.
Actual power consumption can vary depending on the number and type of installed HDDs and SSDs, RAID activity, processor load, network traffic, connected devices, cooling requirements, and background services.

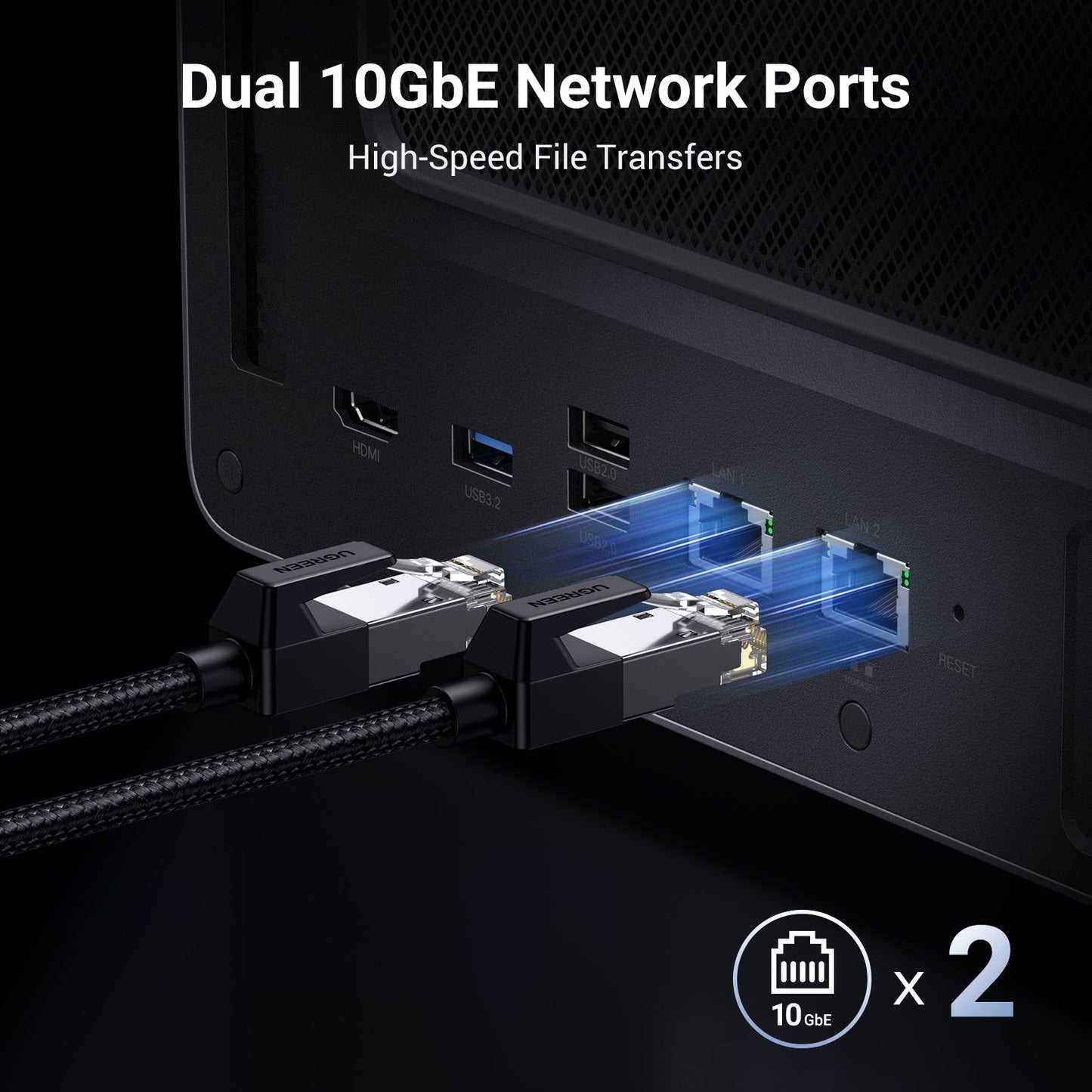

The DXP6800 Pro features two 10GbE RJ45 ports and two Thunderbolt 4 ports with bandwidth of up to 40Gb/s per Thunderbolt connection. The two 10GbE ports can also be aggregated to provide up to 20Gb of total network bandwidth when supported by the network environment.
Actual file-transfer speeds depend on factors such as the client device, network switch, cabling, RAID configuration, installed drives, and file type. A single 10GbE client should not be expected to achieve 20GbE transfer speeds. If speeds are lower than expected, see how to troubleshoot slow NAS transfer speeds.
Visit the UGREEN NAS Download Center and select DXP6800 Pro. Use the Product Documentation section for manuals and download System Firmware only when it is listed for the exact DXP8800 Plus model.
