How to Fix Slow VM Performance on UGREEN NAS

A VM on UGREEN NAS usually runs slowly because the guest lacks CPU or memory, the NAS is busy with other services, storage latency is high, Guest Tools are missing, or an external datastore path is saturated. Identify where the VM runs, then measure that path before changing hardware.

The built-in Virtual Machine app is available on supported DXP-series models. It is unavailable on the DH2300 and DH4300 Plus.

Why Is My UGREEN NAS VM Slow?

Start with the narrowest symptom you can reproduce, “Windows takes 40 seconds to open an application during a NAS backup”.

Does the VM Run on UGREEN NAS or Use It as Storage?

This decision determines which performance checks are relevant.

VM Running Directly Inside UGOS Pro

For a VM created in the UGREEN NAS Virtual Machine app, the main virtual-disk path is:

Guest workload → virtual hardware → UGOS Pro virtualization layer → NAS volume → storage pool → drives

The physical network affects how users and other devices reach the guest. It is not automatically part of every virtual-disk operation because the VM disk already resides on a local NAS volume. The network can still affect an application that reads its data from an SMB, NFS, or other network share inside the guest.

Focus first on guest resources, total NAS load, the VM’s storage volume, background tasks, and supported guest drivers.

VM Running on an External Hypervisor

When Proxmox, ESXi, Hyper-V, or another host stores VM disks on UGREEN NAS, the path becomes:

Guest workload → hypervisor → storage protocol → host NIC → switch → NAS NIC → storage pool → drives

In this architecture, NFS, iSCSI, SMB, physical network capacity, and protocol configuration can directly affect virtual-disk performance. For the architecture and protocol decision itself, see VM Storage on NAS: NFS vs. iSCSI vs. Local NVMe.

How Do You Measure VM Performance Before Tuning It?

Record a repeatable test so you can tell whether each change actually helps.

1. Define the symptom. Note the exact action that feels slow: booting, signing in, opening an application, copying data, querying a database, or installing an update.
2. Record when it happens. Check whether the slowdown is constant or appears during backups, indexing, media analysis, antivirus scans, snapshots, storage maintenance, or activity from another VM.
3. Check inside the guest. Watch CPU use, available memory, swapping or paging, disk activity, and application-level errors.
4. Check the Virtual Machine app. Review the VM’s CPU and memory load, network activity, storage location, and current state.
5. Check the NAS as a whole. Look for sustained CPU or memory pressure, a busy storage pool, low free space, drive warnings, or another service consuming resources.
6. Repeat the same workload. Use the same file, application task, or test duration after each change.

How Do You Fix a Slow VM Running Directly on UGREEN NAS?

1. Check the Guest Before Increasing Its Allocation

Open the guest operating system’s resource monitor and reproduce the slowdown.

• Sustained guest CPU use near its available capacity points to a CPU-bound application or insufficient assigned processing resources.
• Low available memory combined with active paging or swapping points to memory pressure.
• High disk activity with low CPU use points toward storage latency or a workload waiting on I/O.
• Normal resource use with one slow application points toward that application’s configuration, database, network dependency, or internal logs.

Use these allocations as starting points for testing, then adjust them from measured demand and available NAS headroom:

Windows 11’s minimum requirements include two CPU cores, 4GB RAM, 64GB storage, UEFI with Secure Boot capability, and TPM 2.0. Those are installation requirements, not a responsive-performance target.

Assigning more vCPU or RAM than the guest uses can reduce the resources available to UGOS Pro, other VMs, file services, containers, and background tasks. Preserve host headroom and increase one resource at a time only when the baseline shows that it is constrained.

2. Preserve Resources for UGOS Pro

The NAS host and its guests share the same processor, memory, and storage. A VM can appear healthy inside the guest while the NAS host is under pressure.

Check whether multiple VMs, Docker containers, media processing, file indexing, antivirus scans, backup jobs, or other services are active at the same time. Temporarily pause one nonessential task and repeat the baseline test. A clear improvement identifies contention without requiring a hardware purchase.

If every VM and normal NAS service becomes slow together, focus on total NAS resource use before tuning an individual guest.

Maximum memory differs substantially across VM-capable models:

Check the specification for your exact model on the UGREEN NAS model comparison page before purchasing memory.

{{UGPRODUCT}}

3. Check the VM Storage Location

Virtual machines generate frequent small, random reads and writes. This workload behaves differently from copying one large media file.

• HDD-backed storage: Suitable for capacity-focused or lighter workloads, but several active guests can create more random I/O than the drives can serve responsively.
• SSD-backed storage: Provides lower latency and more predictable random-I/O performance for active VM disks.
• SSD cache: Results depend on cache configuration and workload behavior. It is not equivalent to placing the VM on an SSD storage pool.

Also check the volume’s remaining capacity. A nearly full volume has less working space for guest updates, snapshots, temporary files, and normal storage operations.

4. Review RAID Workload and Storage Activity

RAID level affects usable capacity, drive-failure protection, and write behavior.

RAID 5 and RAID 6 calculate parity and can add overhead to write-heavy random-I/O workloads. RAID 10 avoids parity calculations and may provide more consistent write latency, but it uses more raw capacity. That trade-off makes RAID 10 appropriate only when the workload justifies the capacity cost and the storage design still meets the required protection level.

RAID synchronization, rebuilding, expansion, and other storage operations also compete with VM I/O. Let critical storage work complete or test the VM outside its busiest period before changing the RAID layout.

5. Install Guest Tools for Supported Windows VMs

UGREEN Guest Tools supports Windows 7, Windows 10, and Windows 11 guests. It provides VirtIO disk and network drivers, more accurate memory reporting, and improved display-resolution support.

For Windows 10 and Windows 11, verify that Guest Tools is mounted and installed, then restart the guest so the drivers load correctly. If Windows Setup cannot detect the virtual disk, load the matching VirtIO storage driver during installation.

For the complete installation workflow, use How to Optimize UGREEN NAS VM Performance With Guest Tools.

6. Separate Console Lag From VM Slowness

The browser console adds a virtual display and remote-control layer. A low frame rate, delayed mouse movement, or choppy screen refresh does not necessarily mean that the guest CPU, application, or storage is slow.

Compare the console with the guest’s normal access method:

• Use Remote Desktop for a Windows guest where appropriate.
• Use SSH for a Linux guest.
• Test the application directly from another device on the LAN.

If the normal remote session is responsive while only the console is laggy, focus on Guest Tools, the virtual graphics driver, display settings, and client-browser behavior rather than adding NAS hardware.

7. Check Network Mode Only for Network Symptoms

For a direct-on-NAS VM, network mode affects guest connectivity, not the local virtual disk itself.

• MacVTap gives the VM LAN connectivity but prevents direct communication with the NAS host through that virtual network architecture.

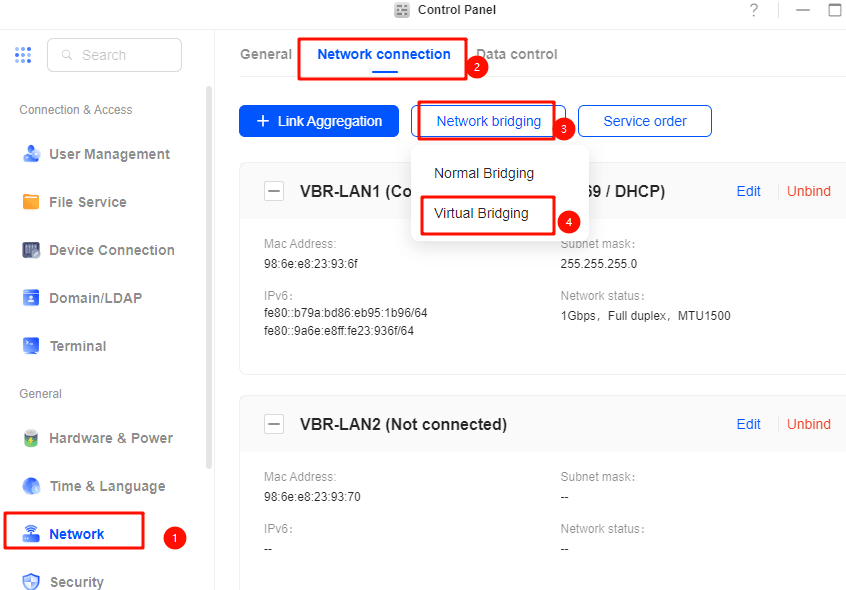

• LinuxBridge on a compatible NAS bridge allows the VM to communicate directly with the NAS host.
• NAT provides translated network access when a valid NAT subnet is selected.

If the guest is fast locally but slow when reaching an SMB share, application server, or internet service, test the guest network separately. If the guest can reach the internet and other LAN devices but cannot reach the NAS host, the issue is network mode rather than VM compute performance.

How Do You Fix an External Hypervisor Using UGREEN NAS Storage?

1. Compare the VM With Local Host Storage

If the VM performs normally on local storage but slows down on the NAS datastore, the constrained layer is likely in the external storage path rather than inside the guest.

This comparison does not identify the exact cause by itself. Continue by checking hypervisor datastore latency, network use, NAS load, and the storage pool during the same workload.

2. Measure the Network Instead of Assuming It Is Too Slow

A 1GbE connection commonly delivers roughly 100–110 MB/s for a large sequential transfer under favorable conditions. VM workloads often depend more on latency and random I/O than on maximum sequential throughput, so VM count alone does not establish a need for 10GbE.

Check:

• Negotiated link speed on the hypervisor, switch, and NAS.
• Link utilization during the slow workload.
• Packet errors, dropped packets, or an unexpected speed negotiation.
• Other devices or services sharing the same uplink.
• Consistent MTU settings when jumbo frames are already in use.

A faster network is the correct upgrade when the existing link is measurably saturated or adds the latency seen by the VM. If link use remains low while storage latency rises, focus on the NAS pool, drives, or protocol configuration instead.

3. Keep Protocol Tuning Platform-Specific

NFS, iSCSI, and SMB expose storage differently. Their performance depends on the hypervisor, filesystem, network, NAS configuration, and workload.

• NFS: Provides file-based shared storage and is often straightforward for supported hypervisors. Use the NFS version and mount behavior supported by the hypervisor rather than applying generic Linux mount flags to every platform.
• iSCSI: Presents block storage to the initiator. Configure ownership carefully, especially when more than one host is involved. Multipathing is useful only when the environment has multiple supported and correctly separated paths.
• SMB: Use it as a VM datastore only where the hypervisor explicitly supports that architecture and the required SMB features are available and configured.

Change one protocol parameter at a time, preserve the previous configuration, and repeat the same workload after each change.

4. Check the Complete Storage Pool

Fast networking cannot compensate for a storage pool that is already saturated by random I/O.

Correlate the hypervisor’s datastore latency with NAS storage activity. Check whether performance drops when several VMs issue I/O simultaneously or when backups, snapshots, media jobs, or storage maintenance are active.

For write-heavy or latency-sensitive guests, compare the workload on SSD-backed storage where available. If the SSD test removes the delay while the network and guest remain unchanged, the original storage tier is the more likely bottleneck.

Which Upgrade Will Actually Make the VM Faster?

Add Memory for Demonstrated Memory Pressure

More NAS memory can help when UGOS Pro and active workloads are under real memory pressure. More guest memory helps when that guest is paging or cannot keep its working set in RAM. Available unused memory by itself is not a performance problem.

Use SSD-Backed Storage for Random-I/O Latency

An SSD storage pool is the most direct storage upgrade when active VM disks are limited by HDD random I/O. Keep bulk files on HDD storage when capacity matters more than latency, while placing active guest disks on the tier suited to their workload.

Upgrade the Network for Measured Saturation

Move to 2.5GbE, 10GbE, or faster networking when testing shows that the current link is the constrained layer. The hypervisor, NAS, switch, cabling, and any intermediate adapters must support the target speed.

Change RAID Only When the Workload Justifies It

RAID 10 can help write-heavy random-I/O workloads by avoiding parity calculations, but it reduces usable capacity. Keep RAID 5 or RAID 6 when their protection and capacity balance better match the workload and measured performance remains acceptable.

Reduce Concurrent Work When Hardware Is Fully Utilized

Lower VM density, stagger heavy jobs, or move a demanding workload to dedicated compute or storage when the NAS is consistently at its practical limit. This is often more reliable than assigning every available resource to one guest.

Prevent VM Performance Problems From Returning

• Preserve CPU and memory headroom for UGOS Pro and normal NAS services.
• Keep adequate free space on the VM storage volume.
• Schedule backups, scanning, media indexing, and storage maintenance away from the VM’s busiest periods.
• Keep UGOS Pro, the Virtual Machine app, guest operating systems, and supported guest drivers current.
• Review VM resource use after adding another guest or changing an application workload.
• Use snapshots as short-term rollback points before risky changes, and keep independent backups for durable protection.
• Recheck the complete path after changing a switch, bridge, network adapter, storage pool, or hypervisor configuration.

Frequently Asked Questions

How much RAM should I assign to a UGREEN NAS virtual machine?

Start a lightweight Linux service with 2–4GB RAM, a general Linux desktop or application VM with 4–8GB, and a lightly used Windows 10 or Windows 11 VM with about 8GB. These are starting points, not fixed requirements. Preserve enough memory for UGOS Pro and other NAS services, then adjust the VM after measuring paging and host memory pressure.

What storage latency is too high for a virtual machine?

Under 10 ms is a favorable target for SSD-backed VM storage. At 10–20 ms, compare the latency with application response and a known-good baseline. Sustained latency above approximately 20–25 ms warrants investigation for storage contention, queueing, network delay, snapshots, RAID activity, or an overloaded datastore.

Why will Windows 11 not install or boot in the VM?

Windows 11 requires at least two CPU cores, 4GB RAM, 64GB storage, UEFI with Secure Boot capability, and TPM 2.0. A TPM or Secure Boot error is a setup-compatibility problem rather than a performance bottleneck. Confirm that the selected VM configuration can meet those requirements before troubleshooting speed.

Will 10GbE make my virtual machine faster?

10GbE helps when an external datastore link or guest-network path is measurably saturated. It will not fix guest memory pressure, a busy NAS processor, HDD random-I/O latency, missing drivers, or storage contention. Measure link use and latency during the slow workload before upgrading.

Is an SSD pool better than SSD cache for virtual machines?

An SSD-backed storage pool provides direct and predictable low-latency storage for active VM disks. SSD cache effectiveness depends on the cache configuration and workload pattern. For sustained random-I/O workloads, test an SSD-backed volume directly rather than assuming cache will produce the same result.

Can Guest Tools improve Windows VM performance on UGREEN NAS?

Yes. UGREEN Guest Tools supports Windows 7, Windows 10, and Windows 11 guests and provides VirtIO disk and network drivers, more accurate memory reporting, and improved display-resolution support. Restart the guest after installation so the drivers load correctly.

Why is the VM web console laggy when the application runs normally?

The browser console has its own virtual display and remote-control path. If RDP, SSH, or direct application access is responsive, the guest may be healthy while the console or graphics driver is the constrained layer. Check Guest Tools, the supported display driver, display settings, and the client browser.

Does RAID 10 always improve VM performance?

No. RAID 10 can provide more consistent write behavior for random-I/O workloads because it avoids parity calculations, but it uses more raw capacity. RAID 5 or RAID 6 may remain the better choice when capacity and protection are more important and measured performance already meets the workload’s needs.
