What Drives Should You Use in a UGREEN NAS?
For UGREEN NAS storage pools, start with a NAS-rated CMR hard drive: Seagate IronWolf, WD Red Plus, or Toshiba N300 for home backup, media, and everyday file sharing, and their Pro equivalents — IronWolf Pro or WD Red Pro — for larger arrays and heavier sustained workloads. The Pro tier roughly triples the rated annual workload and adds two years of warranty.
Use SATA or M.2 SSDs when your applications need lower latency, and confirm your exact UGREEN NAS model supports the SSD in its intended role.
Check Compatibility Before Comparing Drive Brands
UGREEN NASync systems support third-party storage drives, but compatibility depends on the exact NAS model and drive part number.
Before buying, check these three items:
- NAS model: Select your exact UGREEN NASync model.
- Drive category: Confirm whether you need a 3.5-inch SATA HDD, 2.5-inch SATA HDD or SSD, or M.2 NVMe SSD.
- Full model number: Match the complete manufacturer part number rather than relying on the brand, product-family name, or capacity.
Start with the UGREEN NAS Compatibility List. An unlisted drive may still be detected, but we have not verified its stability or performance with that NAS model. For important data, use a tested model.
Readers who have not selected their enclosure yet should browse and filter UGREEN NAS storage models before buying drives. The number of SATA bays and M.2 slots determines which storage configurations are possible.
Once compatibility is settled, the workload determines which drive class makes sense.
Which Drive Fits Your NAS Workload?
| NAS workload | Recommended drive | Main tradeoff |
|---|---|---|
| Family photos, computer backups, media, and light file sharing | Seagate IronWolf 8TB, ST8000VN004 | It is a 7,200 RPM mechanical drive, so seek noise will be noticeable in a bedroom or quiet office. |
| Frequent creative work, active team storage, or sustained multi-user access | Seagate IronWolf Pro 16TB, ST16000NT001 | Higher purchase cost, power consumption, and noise than a standard IronWolf drive. |
| Six- or eight-bay array under continuous heavy activity | Seagate Exos X18 16TB, ST16000NM000J | Exos drives prioritize enterprise operation over household acoustics. |
| Virtual machines, databases, and write-heavy application data | Kingston DC600M 3.84TB SATA SSD | It occupies a SATA drive bay and costs substantially more per terabyte than an HDD. Its SATA interface also limits each drive to roughly 560 MB/s. |
| Repeated access to small files on an HDD pool | Samsung 990 PRO 2TB NVMe SSD | SSD cache does little for large sequential monitor SSD health and temperature. |
The difference between standard and Pro drives is measurable. WD Red Plus drives carry a 180TB-per-year workload rating and a three-year limited warranty, while WD Red Pro drives carry a 550TB-per-year workload rating and a five-year limited warranty. Western Digital’s Red Plus data sheet and Red Pro product brief show how substantially those classes differ.
A workload rating measures the amount of data transferred to or from the drive over a year. It is not a prediction of how many years the drive will last. A home NAS that mainly stores backups and media may never benefit from a 550TB-per-year drive, while a busy multi-user array may justify the additional headroom and longer warranty.
For a dated comparison of specific capacities, specifications, and models, compare current NAS HDD options.
Why Are CMR NAS Drives the Default for RAID?
RAID repeatedly writes across multiple drives and places the surviving drives under sustained load during a rebuild. Recording technology and error-recovery behavior therefore matter more in a NAS than they do in a lightly used desktop computer.
CMR vs. SMR
CMR drives write data to separate magnetic tracks. Their sustained-write behavior is predictable enough for RAID creation, scrubbing, rebuilding, and frequent file changes.
SMR drives overlap portions of adjacent tracks to increase storage density. Updating existing data can require rewriting a larger region of the disk, producing slower and less predictable performance during sustained writes.
Use CMR drives for RAID storage pools. UGREEN does not recommend SMR drives for this role because array rebuilds and sustained rewrites can become slower and less predictable.
Should You Use an HDD, SATA SSD, or M.2 NVMe SSD?
HDDs and SSDs solve different storage problems. Selecting the fastest medium by default can waste money without improving the workload that matters.
HDDs for bulk storage
Hard drives remain the practical choice for:
- Computer and phone backups
- Photo and video libraries
- Media collections
- Shared household files
- Large archives
- Capacity-focused RAID arrays
A single modern CMR HDD can already fill most of a 1GbE connection during a large sequential transfer. Practical 1GbE file transfers generally top out near 110MB/s, so replacing the HDD with an SSD will not make that network connection substantially faster.
HDD performance becomes more important with several simultaneous users, faster Ethernet, high-bitrate video, or sustained write activity. In those situations, drive count, RAID configuration, network speed, and workload all affect the result.
SATA SSDs for quiet, latency-sensitive storage
A compatible 2.5-inch SATA SSD can be used in a supported SATA bay to create an SSD storage pool.
SSD pools are useful for:
- Virtual machines
- Databases
- Application data
- Containers
- Frequently accessed project files
- Workloads dominated by small random reads and writes
- Quiet environments where mechanical drive noise is unacceptable
A consumer SSD may be sufficient for a read-heavy home workload. Write-heavy databases, virtual machines, or cache tasks require closer attention to endurance.
Check:
- TBW: The total number of terabytes the manufacturer rates the SSD to write during its warranty period
- DWPD: The number of times the complete drive can be written per day during the rated period
- NAND type: This affects performance and endurance
- Power-loss protection: Particularly valuable for databases and other write-sensitive applications
- Warranty: Confirm that the expected workload remains within its terms
The SSD’s interface speed alone does not determine whether it is suitable for continuous NAS writes.
M.2 NVMe SSDs for storage pools or cache
The available M.2 roles depend on the UGREEN NAS model. For example, the UGREEN DXP2800 has two M.2 NVMe slots that can be used for SSD caching or as a separate SSD storage pool. The four-bay UGREEN DXP4800 Plus supports the same two roles alongside its SATA drive bays.
{{UGPRODUCT}}
A storage pool and cache are not interchangeable:
- SSD storage pool: Files and applications live directly on the SSD.
- SSD cache: Frequently accessed data from an HDD pool is copied to the SSD to reduce repeated HDD access.
Caching is most useful when the workload repeatedly accesses the same small blocks of data. Large sequential transfers, backups, media streaming, and full-file video editing often gain less because the workload continuously moves through data instead of revisiting a small hot set.
For active projects, databases, and virtual machines, a dedicated SSD pool generally provides more predictable performance than relying on cache. Our guide to using SSDs and HDDs together in a NAS covers pool and cache configuration separately.
How Much Drive Capacity Do You Need?
Start with the data you already have, then account for growth and RAID. Do not calculate the purchase from raw drive capacity alone.
A practical estimate is:
Current data + expected growth + temporary working space + RAID overhead
If you currently have 5TB of data and add approximately 1TB per year, an 8TB usable pool leaves little room for a five-year ownership period. Indexes, applications, snapshots, file versions, and temporary operations also consume space.
Two 8TB drives in RAID 1
RAID 1 mirrors one drive to the other:
- Raw capacity: 16TB
- Decimal usable capacity: 8TB
- Approximate capacity displayed by UGOS PRO systems: 7.3TB
Four 8TB drives in RAID 5
RAID 5 uses the equivalent capacity of one drive for parity:
- Raw capacity: 32TB
- Decimal usable capacity: 24TB
- Approximate capacity displayed by UGOS PRO systems: 21.8TB
Use the UGREEN RAID Calculator to estimate capacity for your drive count and RAID level.
What happens when drive sizes do not match?
Standard RAID calculations use the smallest member as the basis for every drive.
For example, combining one 8TB drive with three 16TB drives in RAID 5 gives you:
- Actual raw capacity purchased: 56TB
- Capacity recognized as four equal 8TB RAID members: 32TB
- Decimal usable capacity after parity: 24TB
- Raw capacity left unused on the three larger drives: 24TB
Matched capacities produce a more predictable result and make future replacement planning easier. UGREEN also advises against mixing old and new drives in the same array because the older members may face increased failure risk during a rebuild.
Higher-capacity drives reduce the number of bays needed, but they also increase the amount of data that must be read during a rebuild. A rebuild places sustained load on every surviving member, and an unrecoverable read error can interrupt the process or leave affected data unrecoverable.

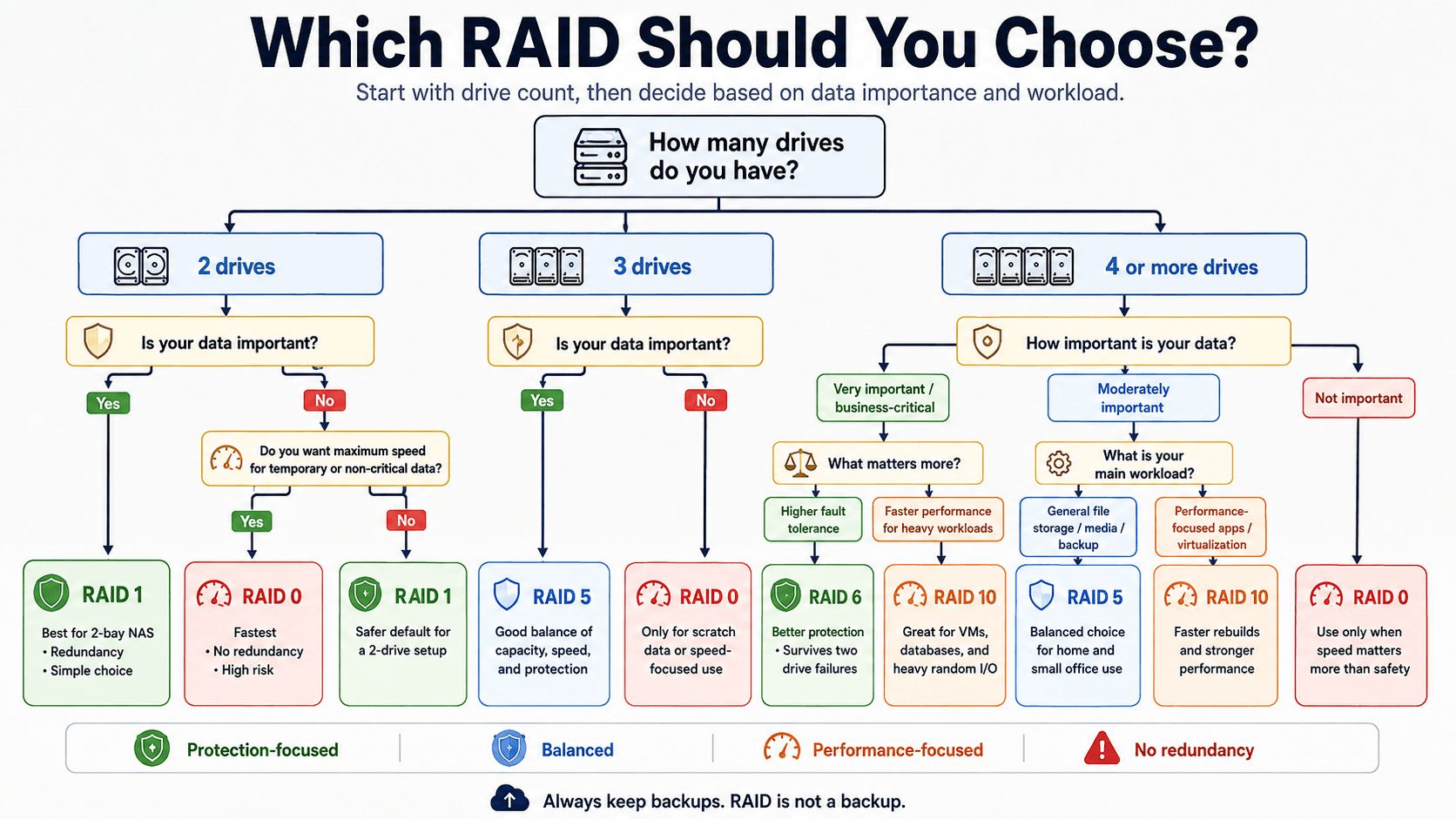

Our detailed RAID guide explains the rebuild and protection tradeoffs among RAID 1, RAID 5, RAID 6, and RAID 10.
Which Drive Specifications Actually Matter?
A long specification sheet does not mean every figure has equal purchasing value.
Exact model number
The exact part number establishes recording technology, capacity, firmware, RPM, sector format, workload rating, and compatibility.
Sector format
A 512e drive exposes 512-byte logical sectors while storing data in 4KB physical sectors. A 4Kn drive exposes native 4KB logical sectors.
Do not mix or manually convert sector formats unless the exact drive models and configuration are supported. Some enterprise drives allow conversion between 512e and 4Kn, but the process erases the drive and can affect compatibility. Buyers should use the sector format supplied on a model verified for their NAS.
Workload rating
This measures annual data transferred to or from the drive. A higher rating makes sense for busy arrays, surveillance workloads, large creative teams, or systems that continuously process data.
It does not describe usable capacity or guarantee a specific service life.
RPM, noise, and power
A 7,200 RPM HDD generally offers stronger sustained performance but produces more noise, vibration, and heat than a slower model.
Lower-RPM drives can be a better fit for bedroom, living-room, or quiet-office placement when the workload is primarily backup and media storage.
Check the acoustic specification for the exact part number rather than the product family. The WD Red Plus range alone contains 5,400, 5,640, and 7,200 RPM models with idle-noise figures that vary substantially by capacity, so two drives sharing a family name can sound noticeably different in the same room. A 7,200 RPM drive in a bedroom is one of the more common first-NAS regrets.
If placement noise is a major concern, read our guide to reducing NAS drive noise before choosing a high-capacity or Pro-class drive.
Warranty
A longer warranty provides more time to request a replacement for a covered failure. It does not recover the files stored on the failed drive.
Standard NAS HDDs commonly carry three-year warranties, while many Pro-class drives provide five years. Verify the terms for the exact model and region.
MTBF and unrecoverable read errors
MTBF describes expected reliability across a large population of drives operating under specified conditions. It does not mean one drive will run for the stated number of hours.
Seagate’s IronWolf product manual explicitly describes MTBF as a population statistic rather than a lifespan prediction for an individual drive.
The unrecoverable read-error specification matters during large reads and RAID rebuilds, but it remains a statistical rating. It cannot guarantee that a rebuild will succeed or fail.
HDD cache size
The memory built into an HDD can help buffer some operations, but a larger cache does not automatically produce faster NAS transfers. Platter speed, drive firmware, recording technology, RAID configuration, network speed, and workload usually matter more.
Do not choose one NAS HDD over another solely because its cache number is larger.
Before You Create the Storage Pool
Complete these checks before storing important data:
- Update UGOS Pro to the current release for your NAS model.
- Verify the full model number of every drive against the compatibility list.
- Confirm that the capacities fit the intended RAID configuration.
- Avoid mixing CMR and SMR drives or combining new drives with heavily used members in the same array.
- Run an extended SMART test or the drive manufacturer’s long diagnostic that scans the complete media surface.
- Remember that creating the storage pool erases existing data on the installed drives.
- Enable drive-health alerts and schedule regular SMART testing.
- Schedule data scrubbing for storage configurations that provide it.
- Keep an independent backup of important files.
RAID can keep a storage pool available after specified drive failures. It does not protect against deletion, ransomware, corruption, theft, fire, or failure of the complete NAS.
Frequently Asked Questions
Can I use any hard drive in a UGREEN NAS?
For a RAID pool holding important data, use a NAS-rated CMR drive whose full part number appears on the UGREEN compatibility list. Recognition only confirms the system can talk to the drive; it says nothing about sustained-write behavior, vibration tolerance, or error-recovery timing in a multi-drive enclosure.
Do I need NAS drives, or will desktop drives work?
Desktop drives work for testing or a low-risk single-drive setup. NAS-rated drives are the better default for an always-on array because of RAID-oriented error recovery, sustained workload ratings, and vibration tolerance in multi-bay enclosures. During a read error a desktop drive may retry for an extended period, while NAS firmware returns control to the storage system so the array can use its redundancy.
How many terabytes do I actually get after RAID?
Less than the sum on the boxes, for two separate reasons. RAID redundancy consumes capacity: two 8TB drives in RAID 1 give 8TB, and four 8TB drives in RAID 5 give 24TB. Operating systems then report storage in binary units while labeling them “TB,” so that 24TB pool typically displays as around 21.8TB before system overhead.
